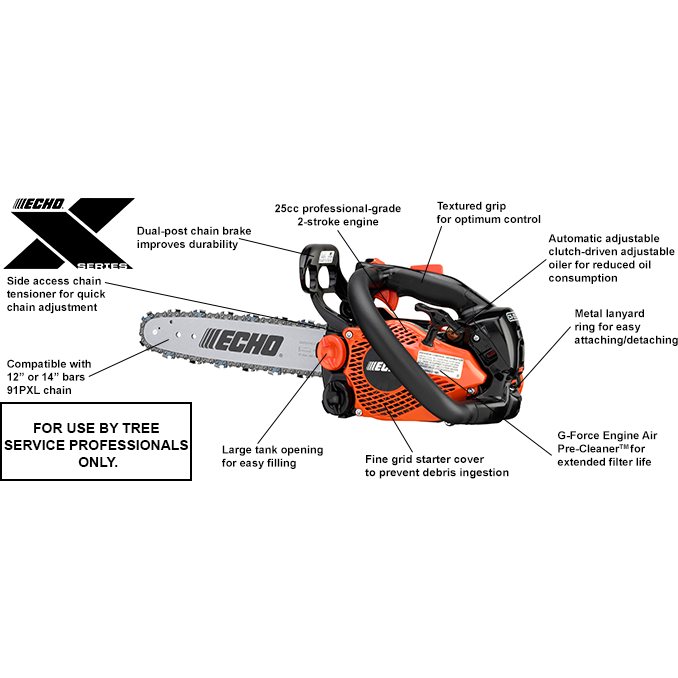

CS-2511T Features
- 25 cc professional-grade, 2-stroke engine
- Choke with automatic fast idle for easy starting
- Clutch-driven adjustable oiler - oiler only runs when chain is moving
- Dual-post chain brake for durability
- Fine grid starter cover to prevent debris ingestion
- G-Force Engine Air Pre-Cleaner™ for extended filter life
- Side-access chain tensioner for easy chain adjustment
- Textured grip for optimum control
CS-2511T Specifications
| Engine Displacement (cc) |
25 |
Oil Capacity (fl oz) |
4.7 |
| Engine Displacement (cu in) |
1.53 |
Dry Weight (lbs)1
|
5.2 |
| Starting System |
Spring-Assist |
Sprocket Cover |
Plastic |
| Ignition System |
Digital |
Bar Type |
Double-Guard 91 |
| Carburetor |
Butterfly-Valve Diaphragm |
Sprocket Type |
Spur |
| Oiling System |
Automatic/Adjustable |
Handle |
Plastic |
| Vibration Reduction System |
Standard |
Consumer Warranty |
5 years |
| Fuel Capacity (fl. oz.) |
6.4 |
Commercial Warranty |
1 years |
