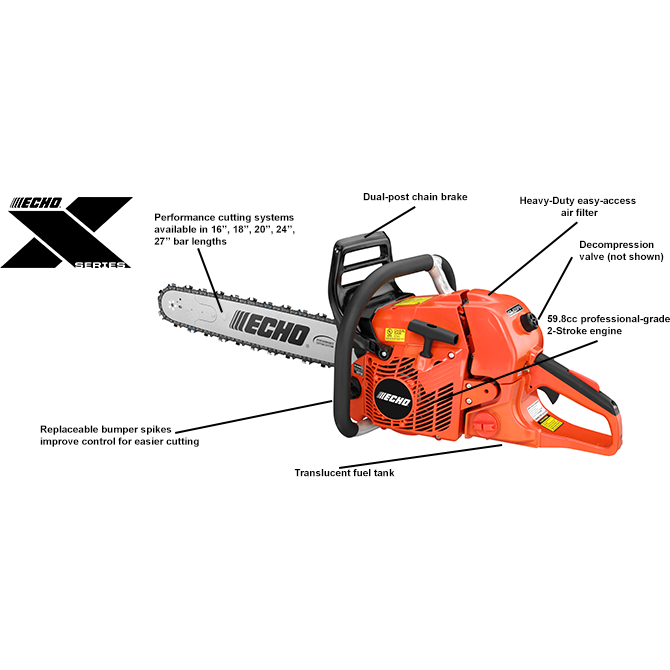

CS-620PW Features
- 59.8cc professional-grade, 2-stroke engine for outstanding performance
- Automatic, adjustable clutch-driven oiler for reduced oil consumption
- Decompression valve for easier starter rope pulling
- Dual bumper spikes for more control while cutting
- Easy-access, heavy-duty two-piece air filter for easy cleaning
- G-Force Engine Air Pre-Cleaner™ for reduced filter maintenance
- Translucent fuel tank for quick fuel level checks
- Wrap handle for more gripping options
CS-620PW Specifications
| Engine Displacement (cc) |
59.8 |
Oil Capacity (fl oz) |
10.2 |
| Engine Displacement (cu in) |
3.64 |
Dry Weight (lbs)1
|
14.1 |
| Starting System |
Standard |
Sprocket Cover |
Magnesium |
| Ignition System |
Digital |
Bar Type |
PowerMatch |
| Carburetor |
Butterfly-Valve Diaphragm (without Purge Pump) |
Sprocket Type |
Rim |
| Oiling System |
Automatic/Adjustable (Clutch-Driven) |
Handle |
Aluminum w/ Rubber |
| Vibration Reduction System |
Standard |
Consumer Warranty |
5 years |
| Available Bar Lengths (in) |
16,18, 20, 24, 27 |
Commercial Warranty |
1 years |
| Fuel Capacity (fl. oz.) |
21.8 |
|
|
