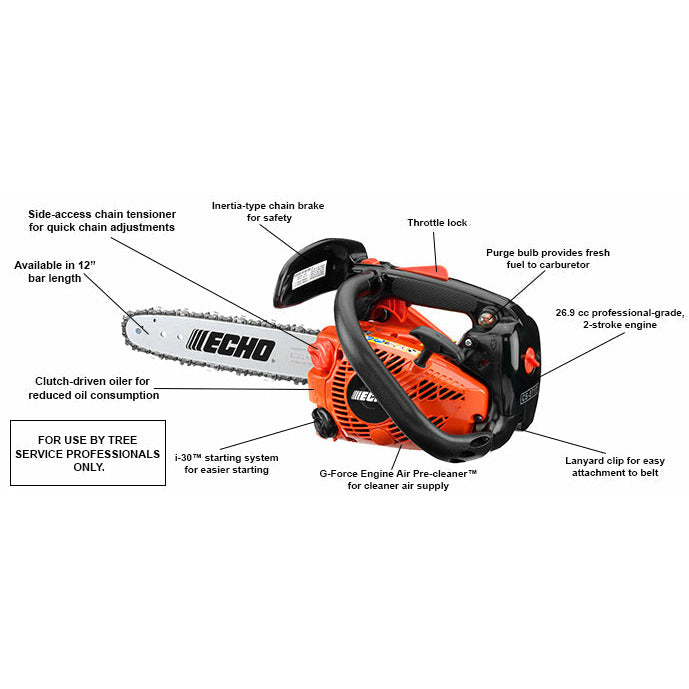

CS-271T Features
- 26.9 cc professional-grade, 2-stroke engine
- Clutch-driven adjustable oiler - oiler only runs when chain is moving
- Fine grid starter cover to prevent debris ingestion
- G-Force Engine Air Pre-Cleaner™ for extended filter life
- Side-access chain tensioner for easy chain adjustment
- Textured grip for optimum control
CS-2511T Specifications
| Engine Displacement (cc) |
26.9
|
Oil Capacity (fl oz) |
5.4 |
| Engine Displacement (cu in) |
1.64 |
Dry Weight (lbs)1
|
6.6 |
| Starting System |
i-30™ |
Sprocket Cover |
Plastic |
| Ignition System |
Digital |
Bar Type |
Double-Guard 91 |
| Carburetor |
Butterfly-Valve Diaphragm |
Sprocket Type |
Spur |
| Oiling System |
Automatic/Adjustable |
Handle |
Plastic |
| Vibration Reduction System |
Standard |
Consumer Warranty |
5 years |
| Fuel Capacity (fl. oz.) |
8.1 |
Commercial Warranty |
1 years |
