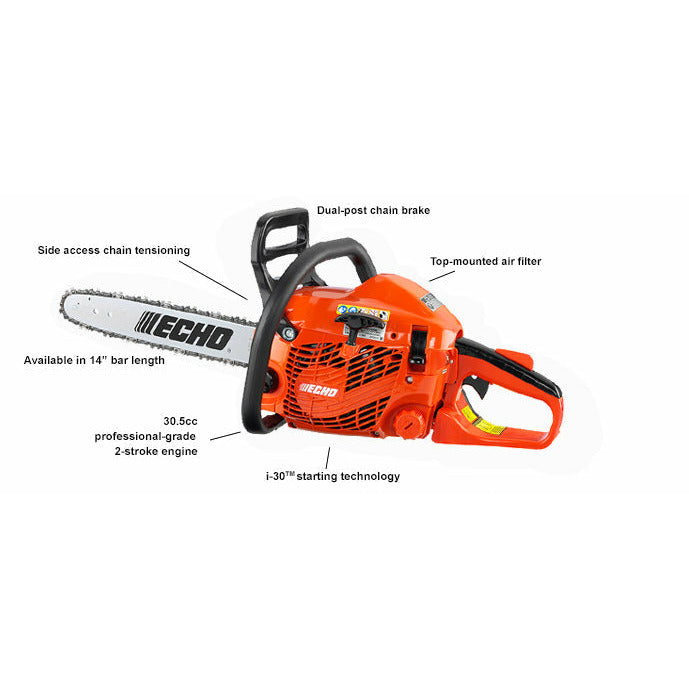

CS-310 Features
- 30.5 cc professional-grade, 2-stroke engine for outstanding performance
- i-30™ starting system for reduced effort starting
- Automatic, clutch-driven oiler for reduced oil consumption
- Side access chain tensioner for quick chain adjustments
- Tool-less air filter cover for easy access
- Vibration-reduction system for operator comfort
CS-310 Specifications
| Engine Displacement (cc) |
30.5 |
Oil Capacity (fl oz) |
8.8 |
| Engine Displacement (cu in) |
1.86 |
Dry Weight (lbs)1
|
8.8 |
| Starting System |
i-30™ |
Sprocket Cover |
Plastic |
| Ignition System |
Digital |
Bar Type |
Double-Guard 91 |
| Carburetor |
Butterfly-Valve Diaphragm |
Sprocket Type |
Spur |
| Oiling System |
Automatic (Clutch-Driven) |
Handle |
Plastic |
| Vibration Reduction System |
Standard |
Consumer Warranty |
5 years |
| Fuel Capacity (fl. oz.) |
8.5 |
|
|
