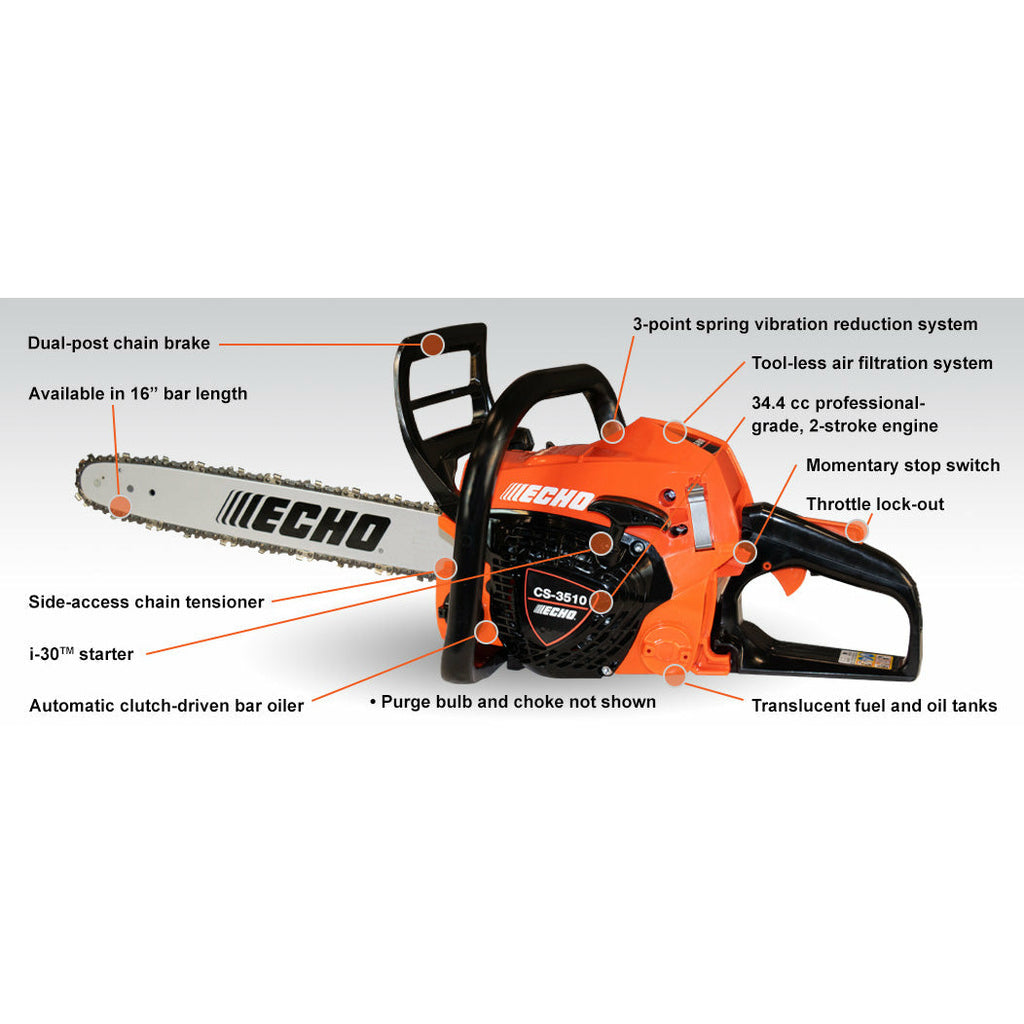

CS-3510 FEATURES
- 34.4cc commercial grade gas engine
- Lower weight means less fatigue and greater productivity
- i-30™ starter reduces starting effort by 30%
- 3-point spring vibration reduction system for operator comfort
- Air Injection Air Cleaner cleans air and reduces maintenance
- Automatic clutch-drive oiler only operates when the chain is moving reducing oil consumption
- Great for felling trees, pruning lower branches, cutting firewood and storm clean-up
- Highest power-to-weight ratio
- Side access chain tensioner for quick chain adjustments
CS-3510 SPECIFICATIONS
| Engine Displacement (cc) |
34.4 |
Oil Capacity (fl oz) |
7.8 |
| Engine Displacement (cu in) |
2.1 |
Dry Weight (lbs)1
|
8.2 |
| Starting System |
i-30 |
Sprocket Cover |
Plastic |
| Ignition System |
1 |
Bar Type |
Laminated |
| Carburetor |
Yes |
Sprocket Type |
Spur |
| Oiling System |
Automatic Clutch-Driven |
Handle |
Plastic |
| Vibration Reduction System |
3-Point Spring System |
Fuel Capacity (fl. oz.) |
9.5 |
| Available Bar Lengths (in) |
16 |
Warranty |
1 yr commercial / 5 yr consumer |
| |
