AN UPGRADE TO ANY PROPERTY.

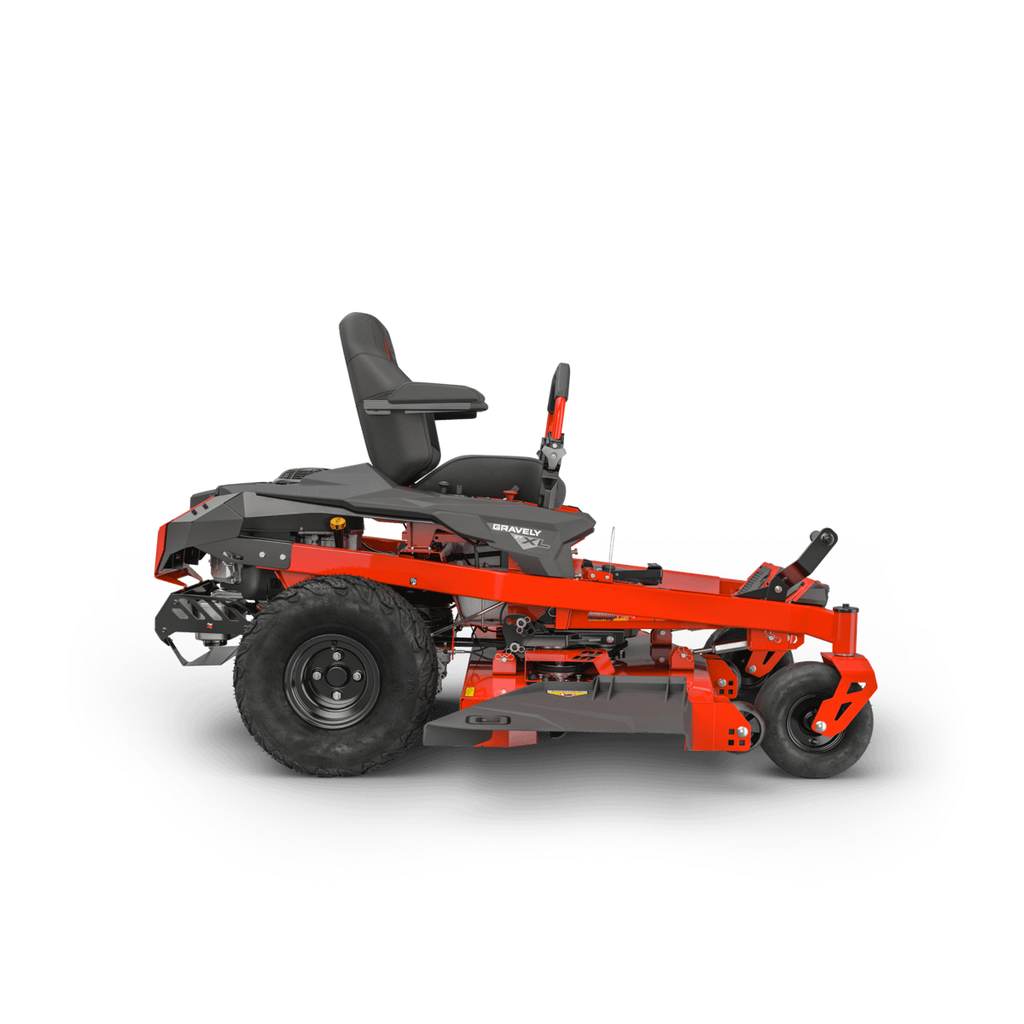

The ZT XL treats residential properties like a pro thanks to its professional-grade power and heavy-duty features. It’s built to handle big jobs while it delivers the comfort needed to mow acre after acre. This is a residential machine with the heart and soul of a commercial mower.
X-FACTOR® 11-GAUGE FABRICATED DECK
Inspired by our commercial machines, this 4 1/2 inch-deep steel deck optimizes
airflow, and the reinforced sloped nose allows more room for grass
to stand up ahead of the cutting chamber for our best cut ever on a
residential machine. Caged anti-scalp wheels make your lawn less
susceptible to damage from minor bumps and scrapes.
ONE-PIECE, FULLY-WELDED TUBULAR CHASSIS
This chassis displays strength and durability with its closed tube frame rails and
fully welded construction techniques influenced by our commercial
applications.
HYDRO-GEAR® ZT-2800® TRANSAXLES
Serviceable transaxles have optimized cooling to ensure smooth running for years to come.
Integrated service ports on the internal reservoirs and a replaceable
filter allow fluid changes for easy maintenance.
TALLER AND WIDER SEAT WITH PADDED ARMRESTS
Ready for the long mow! This seat is 22” tall to provide more back support and
is mounted on a taller seat base to make it easier to stand up and sit
down. Padded armrests deliver extra cushion to keep your arms more
comfortable.
| FUEL SYSTEM |
Gas |
|
|
| FUEL CAPACITY |
3.5 gal / 13.2 ltr |
|
|
| DRIVE SYSTEM |
Hydro-Gear® ZT-2800® Transaxles |
|
|
| TRANSMISSION TYPE |
Hydrostatic |
|
|
| BRAKE TYPE |
Integrated Parking Brake |
|
|
| DRIVER POSITION |
Sit |
|
|
| GROUND SPEED FORWARD |
7 mph / 11.3 kph |
|
|
| GROUND SPEED REVERSE |
3 mph / 4.8 kph |
|
|
| WHEELS FRONT |
11.0 x 6.0 in - 5.0 in (27.9 x 15.2 cm - 12.7 cm) |
|
|
| WHEELS REAR |
20.0 x 10.0 in - 8.0 in (50.8 x 25.4 cm - 20.3 cm) |
| DECK SIZE |
52 in / 132.1 cm |
|
|
| COVERAGE HOUR |
3.6 acres / 1.5 hectares |
|
|
| SPINDLE TYPE |
Mechanical |
|
|
| DECK MATERIAL |
11 ga |
|
|
| DECK CONSTRUCTION |
Fabricated X-Factor® |
|
|
| DISCHARGE CONFIGURATION |
Side |
|
|
| CUTTING HEIGHT MIN |
1.5 in / 3.8 cm |
|
|
| CUTTING HEIGHT MAX |
4.5 in / 11.4 cm |
|
|
| CUTTING WIDTH |
52 in / 132.1 cm |
| WEIGHT (ASSEMBLED) |
705 lb / 319.7 kg |
|
|
| LENGTH |
74.5 in / 189.2 cm |
|
|
| WIDTH (CHUTE UP) |
55.6 in / 141.2 cm |
|
|
| WIDTH (CHUTE DOWN) |
66.7 in / 169.4 cm |
